HYR521C Large Capacity High Speed
Refrigerated Centrifuge
OVERVIEW
HYR521C Self correcting balance swivel can be equipped. When the swivel loses balance, error code will be displayed, an alarm will be given, and the machine will stop automatically.
FEATURES
Intelligent control system
◆ Speed up/down mode can be set, and the speed centrifugal force setting mode is provided. The user can set the speed up/down time at will, and automatically calculate the RCF value.
◆ Program group shortcut key, large storage space, can store 99 program groups, easy to call at any time
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation
◆ Linear drive, 10 gear acceleration, 10 gear deceleration. Settings can be selected according to different sample attributes to ensure better separation effect of samples.
Excellent kernel performance
◆ Large LCD screen, user-friendly interface, intuitive display, simple and convenient operation.
◆ High end chip, microcomputer control, direct drive frequency conversion brushless motor, fast starting speed, stable operation and long service life.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Special thermal insulation process is added inside, greatly increasing the cooling capacity of the centrifuge, effectively preventing the loss of refrigerant, ensuring fast refrigeration and stable temperature during operation.
◆ Imported compressor unit, double circuit temperature control for refrigeration and heating, accurate temperature control.
Careful and safe
◆ The rotor automatic identification system can identify the maximum set value of the rotor, prevent personnel from misoperation, and make centrifugation safer.
◆ The electromagnetic induction door protector with super sensitivity and double electronic door lock catch design are adopted, and the door cover protection, overspeed, over temperature, imbalance and other multiple early warning protection functions are provided to ensure safe operation.
◆ The fuselage is protected by three layers of high-quality all steel structure, and the centrifugal inner chamber is treated by professional environmental protection anti-corrosion process, which is corrosion resistant.
Intimate detail design
◆ The intimate portable fan hood hanger does not occupy the laboratory space to store the fan hood.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system provides more comfortable experimental environment for experimenters.
◆ The side door is designed to facilitate closing and locking the centrifuge cover.
SPECIFICATION
| Model | HYR521C |
| Max Speed | 21000rpm | Voltage | AC 220±22V 50Hz 35A |
| Max RCF | 47580×g | Power | 3500W |
| Max Capacity | 4×750ml | Noise Level | ≤ 65dB(A) |
| Timer | 1s～23h59min | Size | 1250×840×710 (mm) |
| Revolutions/min | ±10r/min | Net Weight | 252kg |
| Temp Range | -20℃～40℃ | Rotor
automatic recognition | Yes |
| Temp Accuracy | ±1.0℃ | / | / |

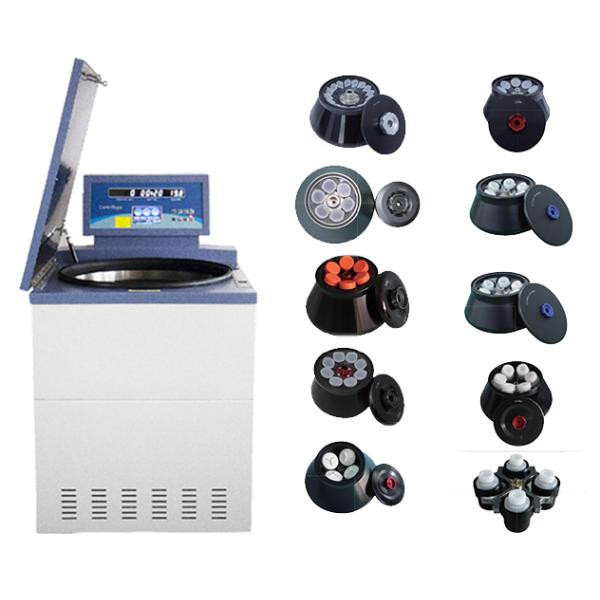

ROTORS
| Rotor Name | Rotor NO. | Rotor Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor | 1 | 24×1.5/2.0ml(titanium alloy) | 25000rpm | 64800×g |
| 2 | 18×10ml | 23000rpm | 60460×g |
| 3 | 8×50ml round type(titanium alloy) | 21000rpm | 52356×g |
| 4 | 8×50ml(round type) | 20000rpm | 46420×g |
| 5 | 6×50ml(sharp type) | 18000rpm | 33506×g |
| 6 | 6×250ml | 14000rpm | 30074×g |
| 7 | 8×100ml | 13000rpm | 19830×g |
| 8 | 6×500ml | 10000rpm | 17700×g |
| 9 | 4×1000ml | 8000rpm | 12040×g |
| 10 | 24x15ml | 18000rpm | 47000xg |
